*** New ***
Siemens
Flow-Matched
Sets
63 lb / hr
Injector
USCAR Connector
(sold as 60's or 65's by some vendors)
$55.00 each
M.S.R.P. $70.00ea
email Racetronix with your
quantity requirements.

click on image to zoom
Visa ,MasterCard, Discover, American Express and Electronic Checks
Set of 4
Set of 5
Set of 6
Set of 8
Set of 10
E-mail
Racetronix
with your quantity requirements.

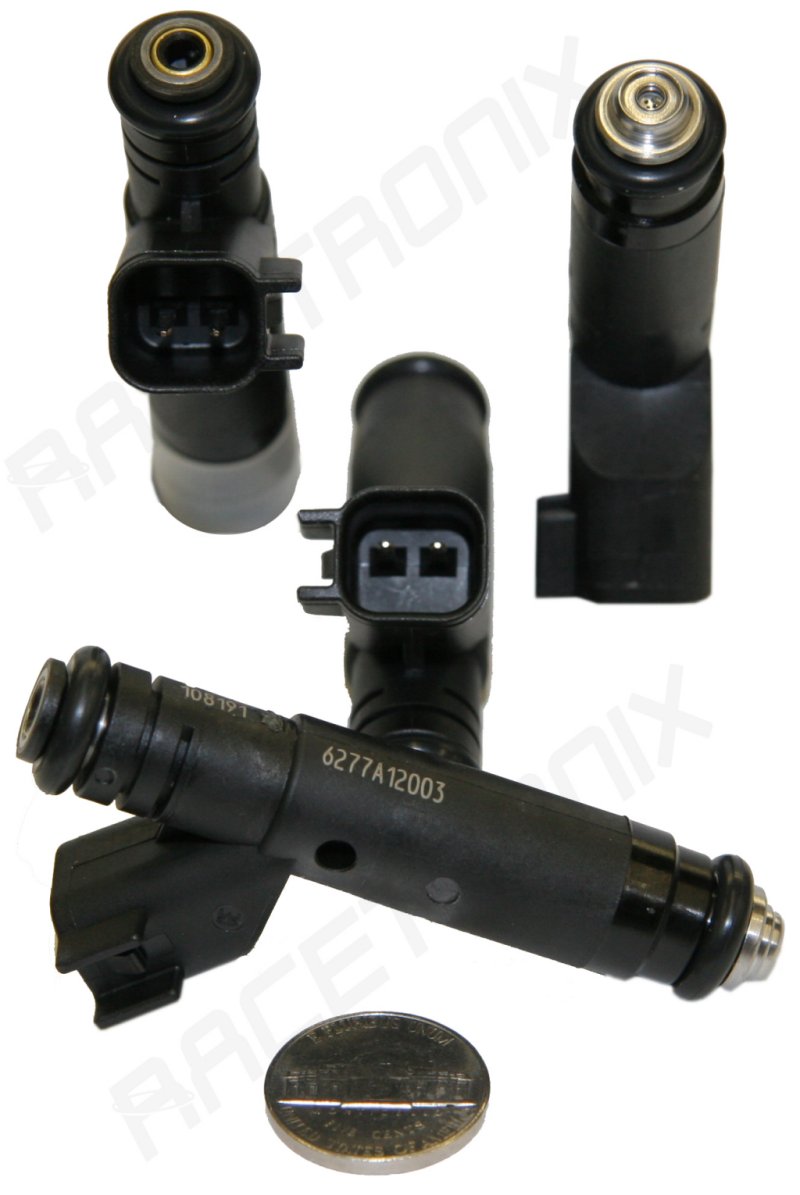

Racetronix #  LU107FM (Siemens FI114191)
This newly released injector from Siemens is the same as our L107 injector except that it has the new USCAR electrical connector. This USCAR connector (sometimes referred to as 'EV6 oval') is found on many late-model G.M. (LS2), Dodge (Hemi), Ford (Modular) and select import motors. This eliminates the need for in-line adapters or having to change the factory connectors.
All tests run with n-Heptane (0.6855g/mL) @ 20oC (+/-1oC), 3.0 Bar (+/-0.01 Bar), 14VDC (+/-0.05VDC), saturated driver wtih RC cutoff. Gas (0.735g/mL) ratings converted at a 1.035:1 ratio.

Static Flow Rate (GAS): 62.7 lb/hr  = 646 cc/min = 474 g/min
Dynamic Flow Rate 2.5ms PW @ 100Hz (GAS): 20.2mg/pulse
Coil Resistance: 12 Ohms (This high-impedance injector will work with all factory ECM/PCM injector drivers)
Gain: 0.11ms/mg
Offset: 0.055ms
Turn on time @ 14VDC: 1.14ms
Turn off time: 0.85ms @ 600KPa
Factory Tollerance: +/-6 %
Spray Pattern: Cone (4-Hole)
Connector: USCAR (Bosch EV6/LS2)
> Click here for dimensions < PLEASE NOTE CONNECTOR IN DRAWING IS MINITIMER
Factory fitted with Viton upper and lower o-rings.
Grease supplied to lubricate o-rings prior to installation.
Dynamically flowed and grouped to within 1% tolerance using  Racetronix custom injector flow bench
If an item is not in stock the payment link will be inactive - no need to ask about availability.
All payments processed securely on-line only.
Visa ,MasterCard, Discover, American Express and Electronic Checks
Sorry, no phone orders. This is a web based offer only.
(Phone orders can be placed through authorized Racetronix dealers - pricing may differ)
Quantities are limited. No substitutions.
For other quantities please contact sales@racetronix.com
All sales final. No refunds.
Shipping and insurance fees will be added to your purchase for EMS with tracking.
(EMS provides a 2-7 business day average delivery is location dependent)
Upon shipment of your order a tracking number will be provided.
Most orders ship the same or next business week day.
