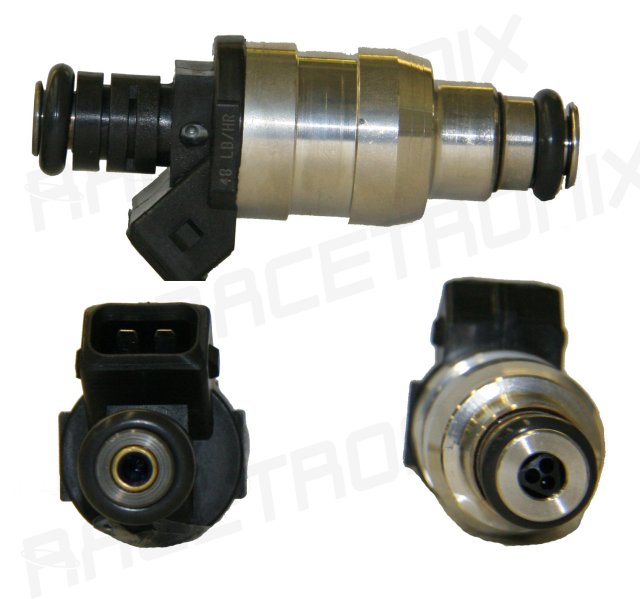

*** New ***
Racetronix
48 lb / hr
Injector

$39.00 each

M.S.R.P. $70.00ea

click on image to zoom
Visa ,MasterCard, Discover, American Express and Electronic Checks
Set of 4
Set of 5
Set of 6
Set of 8
Set of 10
E-mail
Racetronix
with your quantity requirements
Racetronix Part # INJL48 (Manufacture ID 01D116x)
All tests run with n-Heptane @ 20oC (+/-1oC), 3.0 Bar (+/-0.01 Bar), 14VDC (+/-0.05VDC), saturated driver with RC cutoff.
Gas (0.735g/mL) ratings converted at a 1.035:1 ratio.

Static Flow Rate(GAS): 47.8 lb/hr = 5.82g/s = 492cc/min (+/-4%)
Dynamic Flow @ 2.5ms PW @ 100Hz (GAS): 10.48 mg/pulse +/-4% @ 2.5ms PW @ 100Hz
Coil Resistance: 12.2 Ohms / High Impedance / High-Z (no factory ECM/PCM driver modifications required)
Spray pattern: 3-Prong Cone
Body: Top-Feed EV1 Style Body
Electrical Connector : Minitimer / EV1
Factory fitted with upper and lower o-rings
Grease supplied to lubricate o-rings prior to installation.
Click here for Injector dimensions

Note: Injector flow rates are based on testing with n-Heptane test solvent (0.6855 g/ml). U.S. EPA emission test gasoline 40CFR86.113 (0.735g/ml) flows in most common injector designs at about a 3 to 4% higher rate than n-Heptane. A ratio of 1.035:1 can be used when converting the flow specifications above.

TYPICAL APPLICATIONS: High-performance, alternative to Delphi 17113738, upgrade from 01D030B

ADDITIONAL INFORMATION:

Top feed disc injectors use a small disc with six holes around its circumference. The disc rests on a short chimney that surrounds a metering hole. As the disc is raised off the chimney by magnetic force, fuel flows through the holes in the disc, over the walls of the chimney, and out the metering hole to form a full, finely atomized cone.

Performance advantages over pintle injectors (i.e. Ford / Bosch & Accel types) as listed by Delphi:
• The flat mating surface ensures that no excess fuel is present to evaporate and therefore, no deposits or clogging can occur.
Compatible with alternative fuels (i.e. E85, Methanol)
• Longer service life
• High-speed disc action allows wider dynamic flow range for improved idling
• Quieter operation
• Revolutionary disc design resists build up deposits which can affect fuel flow.
• No Fuel leakage for quicker starts
