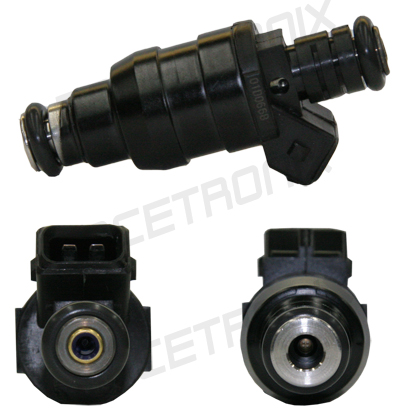

Part Number 01D066x

Note: Injector flow rates are based on testing with n-Heptane test solvent (0.6855 g/ml). U.S. EPA emission test gasoline 40CFR86.113 (0.735g/ml) flows in most common injector designs at about a 3 to 4% higher rate than n-Heptane. A ratio of 1.035:1 can be used when converting the flow specifications above.

All tests run with n-Heptane (0.6855g/mL) @ 20^oC (+/-1^oC), 3.0 Bar (+/-0.01 Bar) (43.5PSI) , 14VDC (+/-0.05VDC), peak/hold (4A/1A) driver. Engineering data specifies a flow ratio of apx. 1.078:1 when converting to gas thanks to this injector's low frictional loss.

Click here for Injector dimensions

TYPICAL APPLICATIONS: High-performance

ADDITIONAL INFORMATION:

Top feed disc injectors uses multiple holes around its circumference. The disc rests on a short chimney that surrounds a metering hole. As the disc is raised off the chimney by magnetic force, fuel flows through the holes in the disc, over the walls of the chimney, and out the metering hole to form a full, finely atomized cone.

The flat mating surface ensures that no excess fuel is present to evaporate and therefore, no deposits or clogging can occur.
Longer service life
High-speed disc action allows wider dynamic flow range for improved idling
Quieter operation
Revolutionary disc design resists build up deposits which can affect fuel flow.
No Fuel leakage for quicker starts

Grease supplied to lubricate o-rings prior to installation.
